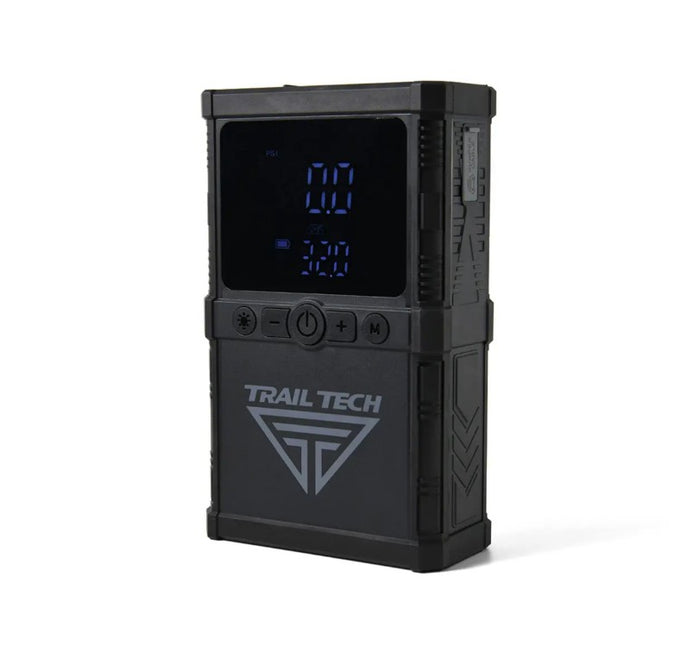

Trail Tech Jump Start Air Compressor

One tool for air, power, and backup starting

The Rugged Jump Starter Air Compressor combines portable tire inflation, jump starting, and USB charging in one compact unit. It is built for riders and drivers who need ruggedized, off-road jump starting and tire security on the trail.

Programmable PSI with automatic stop
Set a target pressure and let the pump stop automatically when it gets there. The digital display shows real-time pressure, preset pressure, battery level, and unit selection, which makes pressure changes faster and more repeatable in the field.

Useful across more than one kind of machine
This unit is designed for motorcycles, UTVs, ATVs, overland vehicles, bicycles, and sports equipment. Included accessories support Schrader valves directly, Presta valves through the included adapter, and ball inflation through the included needle.

More than an inflator
The internal lithium battery also supports jump starting and small-device charging. That gives riders and drivers one compact support tool for flat tires, weak batteries, and dead phones instead of carrying separate gear for each job.

A smart backup power option for Voyager Pro 4
With a compatible barrel-to-JST lead, this device can also power Voyager Pro4 or extend VP4 runtime on vehicles that do not have a suitable DC battery. That makes it especially relevant for snowmobile and dirt-bike installs where portable external power can be more practical than adding a permanent battery.

Easy to carry, easy to stage
The included carry case keeps the device, hose, cables, and inflation accessories together. It also pairs naturally with handlebar-bag and MOLLE-style carry solutions for riders who want the unit close at hand.

Key Specs Summary
-Portable air compressor, jump starter, and USB charging power bank in one device
-Programmable pressure with digital display and automatic shutoff at the selected target pressure
-Inflation pressure range of 0.2–10.3 bar / 3–150 PSI
-90 W compressor with 27 L/min inflation flow and 22 mm cylinder bore
-8000 mAh lithium battery with 500 A starting current and 1000 A peak current
-Useful for motorcycles, UTVs, ATVs, overland vehicles, bicycles, and sports equipment
-Can also power Voyager Pro4 with a compatible barrel-to-JST power lead on vehicles without a suitable DC battery

Core Device Specifications
-Rated Power: 90 W
-Battery Voltage: 14.8 V
-Battery Capacity: 12000 mAh
-Battery Configuration: 4 × 2000 mAh lithium cells
-Compressor Cylinder Inner Diameter: 22 mm
-Inflation Flow: 27 L/min
-Inflation Pressure Range: 0.2–10.3 bar / 3–150 PSI
-Pressure Units Displayed: bar / PSI / kPa / kg/cm²
-Power Input Port: USB Type-C
-USB Charging: USB-C input, USB-A output
-USB Input / Output Rating: 5 V / 2 A
-Product Dimensions: 197 × 49 × 104 mm
-Net Weight: 695 g

Jump-Starting & Charging Performance
-Starter Current: 500 A
-Peak Current: 1000 A
-Published Start Capacity: Up to 20 starts on a single charge
-Published Engine Guidance: Gas engines up to 5.7 L V8
-Phone / Small-Device Charging: Supported by USB-A output
-Simultaneous Inflation and Device Charging: Not supported

Inflation Controls & Use Modes
-Digital Display: Real-time pressure, preset pressure, unit display, and battery indicator
-Pressure Control: Programmable target pressure with automatic shutoff
-Preset Modes: Balls / Bike / Motorcycle / Motor Vehicle / Custom
-Valve Compatibility: Schrader direct; Presta with included adapter; sports-ball needle supported

Operating Conditions & Safety
-Operating Temperature: -20 to 60 °C
-Hot Surface Note: Air hose and connector can become hot after use
-Cable Safety Note: Use branded original jump starter cables only

Application Guide

-Motorcycle Capacity Estimate: Up to 4 tires
-Motorcycle Pressure Guide: 28–55 PSI / 193–379 kPa
-UTV / ATV Capacity Estimate: Up to 4 tires
-UTV / ATV Pressure Guide: 20–120 PSI / 137–827 kPa
-Overland Capacity Estimate: Up to 2 tires
-Overland Pressure Guide: 26–51 PSI / 179–351 kPa
-Mountain Bike Capacity Estimate: Up to 20 tires
-Mountain Bike Pressure Guide: 20–120 PSI / 137–827 kPa
-Sports Pressure Guide: 3–14 PSI / 21–97 kPa
-Capacity Footnote: Capacity figures are based on full charge and standard tire sizes

VP4 Power-Support Use Case
-VP4 Compatibility Use: Can be used as a portable external power source for
-Voyager Pro4 on vehicles without a suitable DC battery
-Required VP4 Connection: Compatible barrel-to-JST power lead
-Typical VP4 Use Case: Extending VP4 runtime on snowmobiles, dirt bikes, or other installs that do not have an appropriate battery setup

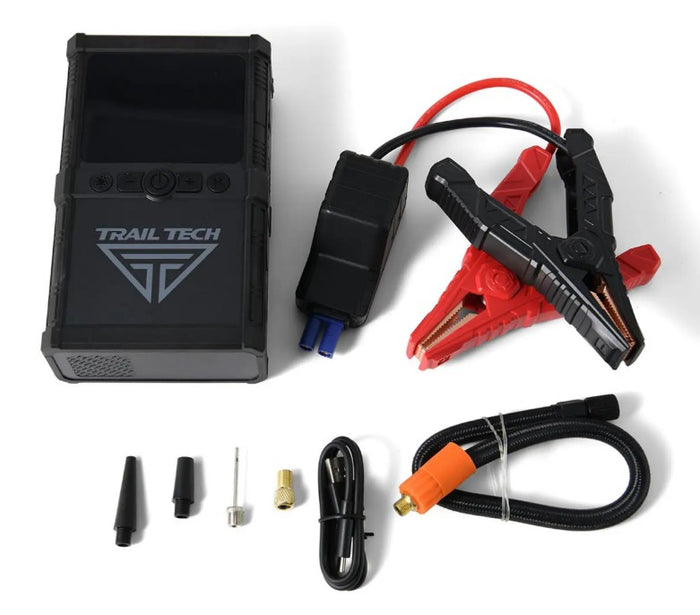

Included in the Box
Main Components
-Rugged Jump Starter Air Compressor: 1
-Carry Case: 1
-Jump Starter Cables: 1 set

Inflation Accessories
-USB-C Charging Cable: 1
-American-Style Quick-Connect Air Hose: 1
-Schrader Valve Connection: Supported directly by hose
-Presta Valve Adapter: 1
-Valve Needle for Balls: 1
-Round Nozzle: 1

Documentation
-010-ELV-206: User Guide

Trail Tech Jump Start Air Compressor
Produced by Trail Tech of USA
